First Look at the Classified SLC-4E
Page 2

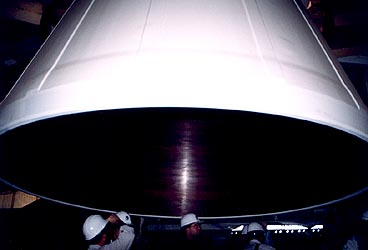

This is one of the SRB nozzles.

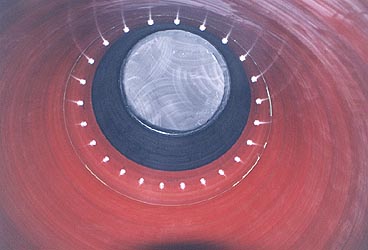

This view is looking up the SRB at the engine plug.

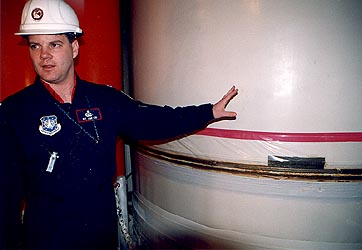

This Air Force personal describes mating of the SRB joints.

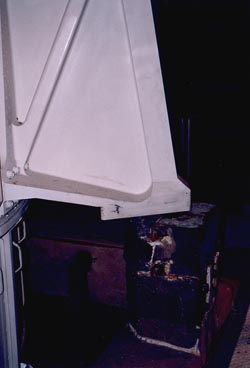

The Titan IV vehicle is not bolted to the Pad but
rests on top of 4 SRB mounts.
