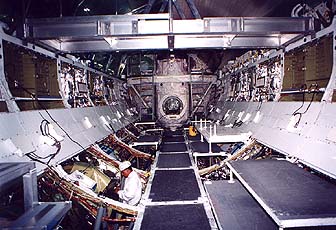

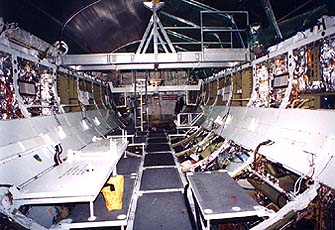

Photo on left is looking from Docking Adapter to the Aft. Photo
on the right is looking forward
from the rear of the Payload Bay. Note size of the technician working
in the Payload Bay.

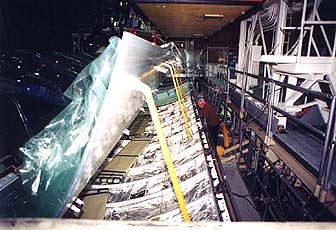

Photo on left is of a Nasa Inspector checking under the deployed Radiator
door which is above the
Payload Bay Door. This photo on the right shows where the new GPS Antenna
will be installed.

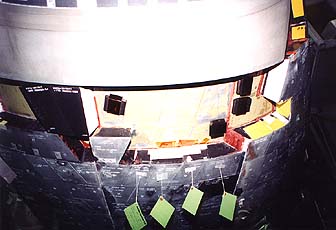

Photo on left is at the nose cone of the shuttle where some of the
thickest tiles are mounted.

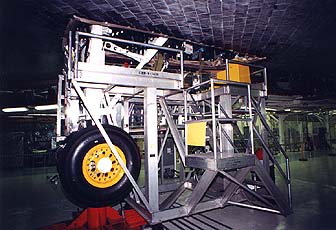

Photo on right is one of the main landing gears. The gear is mounted
on a earthquake mount
so to withstand a Mag. 8+ quake.
